Portable generator
GE S-8054 HBT Protective frame · Petrol

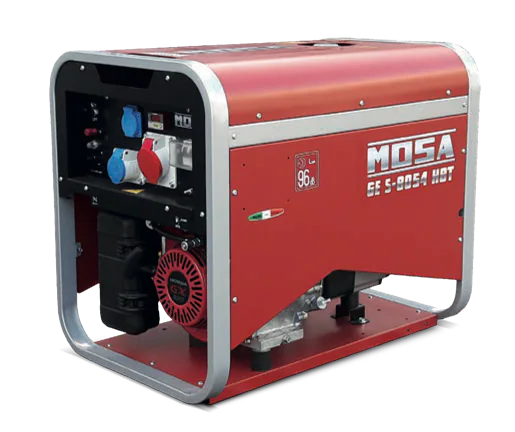

Portable petrol generator with protective frame and HONDA GX 390, 8 kVA / 6.5 kW, 3-phase, 400/230 V.
- LTP
- 8 kVA
- PRP
- 7 kVA
- Voltage
- 3-phase
- Fuel
- Petrol
Classification
Applications of the portable generator
This model is suitable for temporary power supply on construction sites, during service work, at events and for mobile applications. Power, fuel and voltage are summarized for technical selection.
Technical data
Technical data at a glance
Features
- Completely protective and partially hooded structure
- Large capacity tank with level indicator inserted in the cap
- Engine shutdown due to low oil level
- IP54 brushless AVR
- Switch magnetermic
- Insulation monitor
- Multifunction digital instrument
Engine and generator data
General data
* Indoor operation in accordance with Directive 2000/14/EC.
Control panel
- Manual recoil
- Engine start and stop key
- Fuel valve
- Choke
- Fuel gauge
- Multifunction digital instrument: Voltmeter - Frequency meter - Total hour counter - Partial hour counter (resettable)
- Circuit breaker
- Isometer
- Output sockets 1x 400V 16A 3P+N+T CEE IP672x 230V 16A 2P+T Schuko
- Earth terminal (PE)
- Earth leakage circuit breakers (GFI) for Schuko sockets 230V/16A
Definitions:
Ambient conditions for power ratings: Temperature 25°C, altitude 1000 m above sea level, relative humidity 30%.
Standby power (LTP): Emergency power. Maximum available power for operation with variable loads, limited to 500 hours per year. Overload is not permitted.
Prime Power (PRP): Prime power with variable loads. Maximum available power for operation with variable loads for an unlimited number of hours per year. The average power during a 24-hour period must not exceed 70% of the stated value.
Continuous power (COP): Continuous power with constant load. Maximum available power for operation with constant load for an unlimited number of hours per year.
Note: The data is taken from the original technical datasheet. Displayed values are nominal values, may change without prior notice and may vary by up to ±5%.
Inquiry
Prepare inquiry
The selected model is already included. Add your requirements regarding price, delivery time or technical specifications.
- Model and core data are added automatically.
- Price, availability and delivery time can be requested directly.
- Technical requirements can be added in the message field.
Download & comparison
Open datasheet or compare further portable generators
Verified technical answer
GE S-8054 HBT at a glance
GE S-8054 HBT is a three-phase benzin portable generator with 7 kVA / 5.6 kW PRP and 8 kVA / 6.4 kW LTP. The values below are taken from the assigned, field-audited manufacturer datasheet.
| PRP output | 7 kVA / 5.6 kW |
|---|---|
| LTP output | 8 kVA / 6.4 kW |
| Phase / voltage | 3-phase / 400/230 V |
| Fuel | Benzin |
| Engine | HONDA GX 390 |
| Tank / runtime | 20 lt. / 8,5 h |
How should the output be interpreted?
PRP and LTP describe different rated operating conditions. The connected loads, starting currents and operating duration still need to be checked.
What confirms these values?
The visible values and structured data use the same field-audited manufacturer datasheet.
