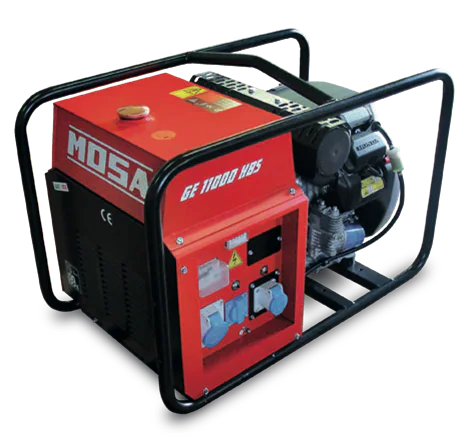

Portable generator
GE 11000 HBS Open · Petrol
Robust open-frame portable petrol generator with Honda GX 630, 11 kVA / 8.8 kW, 1-phase, 230 V.
- LTP
- 11 kVA
- PRP
- 10 kVA
- Voltage
- 1-phase
- Fuel
- Petrol
Classification
Applications of the portable generator
This model is suitable for temporary power supply on construction sites, during service work, at events and for mobile applications. Power, fuel and voltage are summarized for technical selection.
Technical data
Technical data at a glance
Features
- Engine shut down for low oil level (oil alert)
- The recessed control panel protects the sockets
- Suitable for electronic equipments
- A tubular steel frame provides protection for the complete machine
Engine and generator data
General data
* Indoor operation in accordance with Directive 2000/14/EC.
Control panel
- Starter key
- Oil alert alarm lamp (led)
- Hoursmeter
- Manual throttle
- Choke
- Digital multifunction meter: Voltmeter - Frequencymeter - Total Hoursmeter - Partial Hoursmeter (resettable)
- Circuit breaker
- Earth leakage circuit breaker
- Thermal circuit breakers for 230V/16A
- CEE output sockets 1x 230V 32A 2P+T CEE1x 230V 16A 2P+T CEE1x 230V 16A Schuko
- Earth terminal (PE)
Definitions:
Ambient conditions for power ratings: Temperature 25°C, altitude 1000 m above sea level, relative humidity 30%.
Standby power (LTP): Emergency power. Maximum available power for operation with variable loads, limited to 500 hours per year. Overload is not permitted.
Prime Power (PRP): Prime power with variable loads. Maximum available power for operation with variable loads for an unlimited number of hours per year. The average power during a 24-hour period must not exceed 70% of the stated value.
Continuous power (COP): Continuous power with constant load. Maximum available power for operation with constant load for an unlimited number of hours per year.
Note: The data is taken from the original technical datasheet. Displayed values are nominal values, may change without prior notice and may vary by up to ±5%.
Inquiry
Prepare inquiry
The selected model is already included. Add your requirements regarding price, delivery time or technical specifications.
- Model and core data are added automatically.
- Price, availability and delivery time can be requested directly.
- Technical requirements can be added in the message field.
Download & comparison
Open datasheet or compare further portable generators
Verified technical answer
GE 11000 HBS at a glance
GE 11000 HBS is a single-phase benzin portable generator with 10 kVA / 9 kW PRP and 11 kVA / 9.9 kW LTP. The values below are taken from the assigned, field-audited manufacturer datasheet.
| PRP output | 10 kVA / 9 kW |
|---|---|
| LTP output | 11 kVA / 9.9 kW |
| Phase / voltage | 1-phase / 230 V |
| Fuel | Benzin |
| Engine | Honda GX 630 |
| Tank / runtime | 18 lt. / 4.5 h |
How should the output be interpreted?
PRP and LTP describe different rated operating conditions. The connected loads, starting currents and operating duration still need to be checked.
What confirms these values?
The visible values and structured data use the same field-audited manufacturer datasheet.
